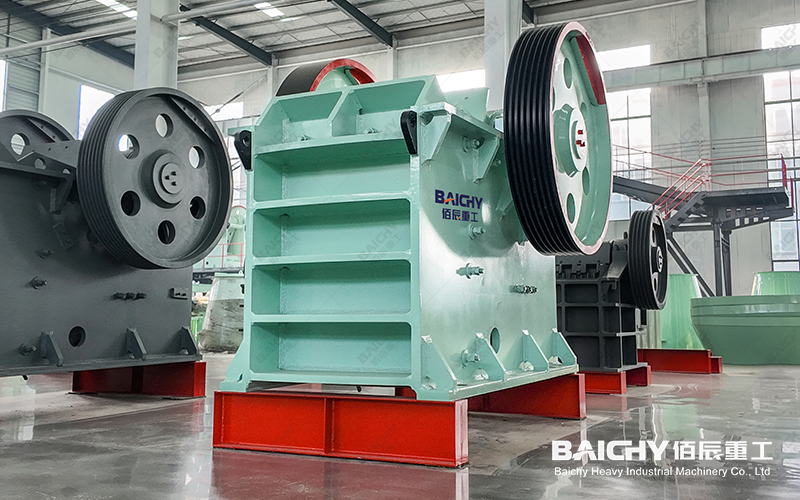

Coal Jaw Crusher
In the mining and processing of coal, large lumps of raw coal (run-of-mine coal) must undergo crushing to meet the specific particle size requirements for subsequent washing, transportation, or direct utilization. As the oldest and structurally most robust and reliable type of coarse crushing equipment, the jaw crusher plays an indispensable role in the primary crushing stage of coal mining operations. Its operating principle is both simple and efficient: by means of a movable jaw plate periodically moving toward and away from a stationary jaw plate, it exerts compressive and splitting forces on the material caught between the two jaws, thereby achieving the crushing effect. Selecting the appropriate jaw crusher for your coal mining project serves as the cornerstone for ensuring the efficient, stable, and economical operation of your entire production line. Before making a decision, you must possess a clear understanding of the following core aspects.
PE Jaw Crusher PDF,Download ↓↓↓
Application Scenarios for Jaw Crushers in Coal Mines
The operational environment and material characteristics inherent to coal mining impose unique demands on equipment; consequently, the application of jaw crushers primarily covers the following scenarios:
1. Primary Crushing of Run-of-Mine Coal in Underground or Open-Pit Mines
This constitutes the primary application scenario. Whether dealing with raw coal extracted from open-pit mines or large lumps of run-of-mine coal emerging from underground mechanized mining faces—which are typically irregular in shape and contain gangue—the material must first be crushed to a particle size of less than 300 mm to facilitate transfer via belt conveyors or to prepare it for the next stage of crushing.
2. Crushing and Processing of Coal Gangue (Waste Rock)
During the coal washing and beneficiation process, significant quantities of coal gangue are separated out. By utilizing a jaw crusher to reduce this gangue to a specific particle size, it can be repurposed for resource utilization projects—such as brick manufacturing, power generation, or road construction—thereby transforming waste into valuable assets and aligning with the development philosophy of "green mining."
3. The Core Unit of Mobile Crushing Stations
For projects involving dispersed mining areas or those requiring frequent relocation, a wheel-mounted or crawler-mounted mobile crushing station equipped with a jaw crusher represents an ideal choice. Such units can be driven directly to the coal mining face, enabling "crushing-as-you-mine" operations; this significantly reduces material transportation costs as well as on-site infrastructure investment requirements.

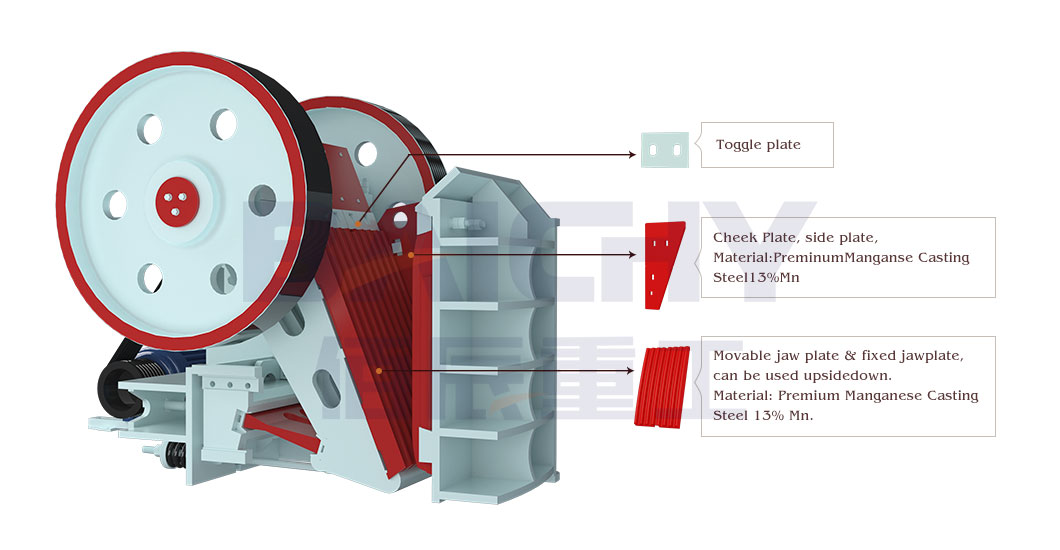

Structural-Diagram-of-the-PE Jaw-Crusher
Key Points to Consider Before Selecting a Jaw Crusher for Coal Mining
Material Characteristics and Feed/Discharge Requirements
This serves as the starting point for the selection process. You must clearly define the following:
• Material Hardness and Abrasiveness: While coal itself is not particularly hard (with a Mohs hardness of approximately 2–3), it is often mixed with gangue (primarily composed of sandstone, shale, etc.), which possesses high hardness and strong abrasiveness. Consequently, the equipment must possess sufficient wear resistance.
• Maximum Feed Size: Determine the maximum size of the coal lumps produced at your mine; this factor dictates the specific model and size of the jaw crusher required.
• Target Discharge Size: What is the maximum particle size you desire for the crushed product? This requirement determines the necessary discharge opening adjustment range and the overall production capacity of the equipment.
Equipment Performance and Key Parameters
Technical parameters serve as a quantitative representation of a piece of equipment's capabilities. The table below presents a comparison of key parameters for several common jaw crusher models used in coal mining operations:
| Model | Feed Opening Size (W x L) | Max. Feed Size | Discharge Opening Range | Processing Capacity (t/h) | Motor Power (kW) | Applicable Scenarios |
| PE-600×900 | 600×900 mm | 500 mm | 65–160 mm | 50–180 | 55–75 | Small to medium-sized coal mines; stationary production lines |
| PE-750×1060 | 750×1060 mm | 630 mm | 80–140 mm | 110–320 | 90–110 | Medium-sized coal mines; primary crushing backbone equipment |
| PE-1200×1500 | 1200×1500 mm | 1020 mm | 150–300 mm | 400–800 | 160–220 | Large-scale open-pit mines; primary crushing for high-output lines |
| C-110 (European Version) | 1100×850 mm | 930 mm | 70–200 mm | 120–450 | 132 | Scenarios requiring higher standards for particle shape and production capacity |
Note: The parameters listed above are provided as examples; the actual equipment selection must be determined based on specific operating conditions. Structural Design and Durability
Coal mining environments are harsh, characterized by high dust levels, potentially high humidity, and strong material impact forces.
• Frame Structure: The frame should be constructed using welded high-strength steel plates or cast steel components to ensure it remains free from deformation under prolonged, heavy-load conditions.
• Jaw Plate Material: Jaw plates must be fabricated from high-manganese steel or other wear-resistant alloys and designed for easy replacement. For mixed materials consisting of coal and gangue, specialized tooth profiles may be required to enhance crushing efficiency.
• Bearings and Eccentric Shaft: Large-capacity roller bearings are capable of withstanding greater impact loads and offer a longer service life. A robust eccentric shaft serves as the critical core for power transmission.
• Adjustment Mechanism: A wedge-block system for adjusting the discharge opening should be flexible and reliable, facilitating rapid adjustments to the output particle size.
Safety and Environmental Considerations
• Iron Protection Device: The crusher must be equipped with a reliable iron protection mechanism (such as a hydraulic toggle plate or linkage system). This mechanism automatically releases when uncrushable objects (e.g., shovel teeth, drill bits) enter the crushing chamber, thereby preventing severe damage to the equipment.
• Dust Control and Sealing: An effective sealing structure significantly minimizes dust spillage and protects the bearings from dust contamination. This is particularly crucial when other equipment is located downwind or when it is necessary to safeguard the health of workers.

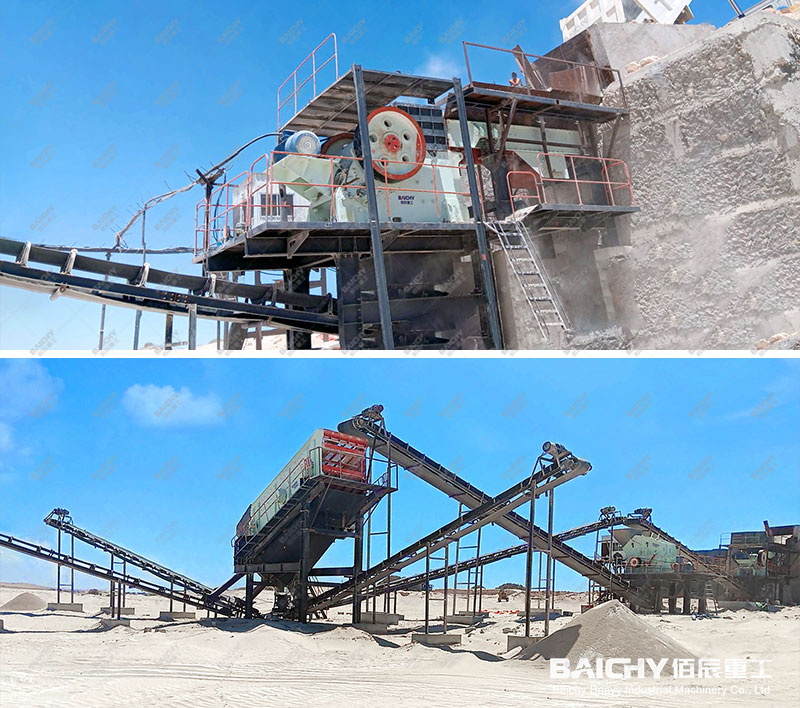

Stationary-crushing-production-line
The Advantages of Choosing a Professional Manufacturer for Jaw Crushers
By selecting a professional manufacturer—such as our company, Yuankuang Machinery—you gain access to comprehensive value that extends far beyond the equipment itself:
1. Tailored Solutions: We offer more than just equipment sales; we provide customized crushing solutions that are perfectly aligned with your coal mine's production output, material characteristics, and process layout.
2. Exceptional Equipment Reliability and Durability: We prioritize robustness from the initial design phase and source key components from top-tier suppliers. This ensures the equipment operates continuously and stably under harsh working conditions, thereby minimizing the risk of unplanned downtime.
3. Superior Energy Efficiency: Our optimized crushing chamber profiles and operational parameters enable higher processing throughput and lower electricity consumption per ton of material processed, relative to input power.
4. Comprehensive Lifecycle Support: From installation and commissioning to operator training, spare parts supply, and preventive maintenance reminders, we provide professional support throughout the entire operational lifecycle of the equipment, giving you complete peace of mind.
Relevant Success Stories
Case Study 1: A Large Open-Pit Coal Mine in Shanxi
• Challenge: The mine faced a massive raw coal output—peaking at 2,000 tons per hour—combined with a high gangue content (approximately 30%). This presented a formidable test for the capacity and wear resistance of the primary crushing equipment.
• Solution: We configured a parallel system comprising two PE-1200×1500 jaw crushers. This solution featured oversized jaw plates made from highly wear-resistant materials, alongside an optimized feed hopper design to ensure uniform feeding.
• Results: The dual-machine system proved stable and reliable, effortlessly handling peak production loads. The discharge size remained consistently below 250mm, providing ideal feed conditions for the downstream coal washing plant. The equipment achieved an average annual operating time exceeding 7,200 hours.
Case Study 2: Mobile Coal Gangue Processing Project in Inner Mongolia
• Challenge: The client required the resource-efficient processing of coal gangue stockpiled at multiple locations. Given the non-fixed nature of the sites, the equipment needed to be capable of rapid relocation between work zones.
• Solution: We recommended a track-mounted mobile jaw crushing station. At its core, this unit utilizes a JC-series (European-style) jaw crusher, delivering a combination of high throughput and superior product shape.
• Results: The equipment achieved a "crush-where-you-go" capability. Operating at a single site for just three months, it processed nearly 200,000 tons of coal gangue. The resulting crushed aggregate was subsequently utilized as a sub-base layer for local roads, generating significant economic and environmental benefits.
Equipment Recommendations
Based on varying coal mine scales and operational requirements, we recommend the following flagship products:
1. PE Series Jaw Crushers: The classic, robust, and economical choice. Featuring a simple structure, ease of maintenance, and highly interchangeable spare parts, this series serves as a reliable choice for the majority of stationary coal crushing production lines. Recommended models: PE-750×1060, PE-900×1200.
2. JC / European-style Jaw Crushers: These units feature a more advanced "V-shaped" crushing chamber design and a modular, weld-free frame structure. This design delivers higher crushing efficiency, superior product shape, and an extended service life. They are ideally suited for medium-to-large-scale projects with higher demands regarding production capacity, finished product quality, and long-term operating costs.
3. Wheel-Mounted/Track-Mounted Mobile Jaw Crushing Station: Integrating feeding, crushing, and conveying functions into a single unit, this station enables "one-stop" processing operations. Offering unparalleled flexibility, it is particularly well-suited for coal mining or coal gangue processing projects characterized by multiple extraction sites, short operational cycles, and dispersed locations.
Frequently Asked Questions (FAQ)
Q1: What are the main differences between jaw crushers designed for coal mines and those used for metal mines?
A1: The primary differences lie in the design and material priorities. Jaw crushers for coal mines process materials that generally possess lower overall hardness but may contain coal gangue; therefore, they place greater emphasis on the ability to handle large-sized lumps and ensure high throughput. Their wear-resistant components must be capable of withstanding both the abrasive wear caused by coal and the erosive wear caused by gangue. Conversely, jaw crushers for metal mines focus more heavily on resisting extremely high hardness and abrasiveness; they require significantly higher structural strength and typically consume more energy.
Q2: How can I estimate the processing capacity required for my jaw crusher?
A2: A basic estimation formula is: Required Processing Capacity (t/h) = Planned Annual Output (t) &pide; Annual Effective Operating Hours. We recommend adding a 20%–30% buffer margin to this calculated value to accommodate production peaks and potential future increases in output requirements. The most accurate approach is to provide us with samples of your raw coal and your detailed production plan, allowing our engineers to perform simulation calculations and recommend the optimal model for your specific needs.
Q3: What are the most critical maintenance points for a jaw crusher during daily operation?
A3: The three most critical points are: 1) Lubrication System: Regularly inspect and replace the lubricating oil with the specified grade to ensure that key components, such as bearings, remain well-lubricated. 2) Fastener Inspection: Since the equipment operates under vibration, it is essential to regularly inspect and tighten all bolts—particularly the bolts securing the liner plates. 3) Jaw Plate Wear Monitoring: Periodically inspect the condition of the jaw plates. When wear reaches a certain threshold or processing capacity drops significantly, the plates should be promptly flipped over or replaced to prevent wear from reaching the underlying plate base, which would result in drastically increased repair costs.
